1. This soap dispenser is suitable for the sink under the table.
2. Using infrared sensing to take soap solution without contact.
3. The soap bottle has a capacity of 1000ml and can be optionally paired with a 500ml soap bottle.
4. Soap liquid outlet options: foam and liquid.
5. AC and DC (optional external battery compartment) models are also both available.
Auto deck mounted soap dispenser has become a trend in construction projects. Users can have the soap and wash their hands without moving their hands out of the basin.
This also simplifies the maintenance work because all water and soap goes into the basin. AC and DC models are both available depending on the accessibility to power in the washrooms.
| Model | Faucet Material | Inner Carton Dimensions (1piece) |
Outer Carton Dimensions (2piece) |
N.W | G.W |
| LGZ01A | Copper | 42*16*10.5 (cm) | 43.5*34*53.5 (mm) | 11kg | 11.5kg |
 |
Auto Deck Mounted Foam Soap Dispenser, Auto Deck Mounted Liquid Soap Dispenser |

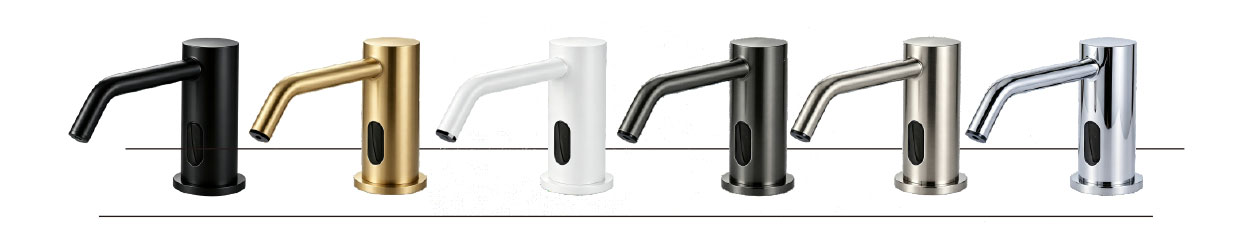

Surface Treatment
Chrome plated/brushed/brushed gold/gun gray/black/white
Ideal For These Locations
● Cruise/Office Space ---- Save washbasin space in compact restrooms.
● Airports/stations ---- multifunctional faucets with high capacity to support large passenger flows.
● Shopping centers/malls ---- create minimalist bathroom designs.
● Exhibition Center/Event Hall ---- Easily handles large crowds and easy to clean .
● School/food factory/electronics factory/pharmaceutical factory ---- no contact with hand washing/hand drying, clean and hygienic.
| Part name/ Size |
 |
| Technical Parameter | |
| ● Input Power: 110-240VAC, 50/60Hz; DC6V | ● Operating Temperature Range: 5-40℃ |
| ● Total Power: <5W | ● Environment Humidity: ≤80% |
| ● Sensing Distance: 3-8cm | ● Opening Hole Diameter: φ25-35mm |
| ● Starting System: Infrared Induction | ● Mounting: Deck Mounted |
| ● Capacity: 1000ml/500ml | ● Liquid Output: 1-1.5ml |
| ● Unfitted Sink: Highly polished surfaces (This may cause self-induction) | |

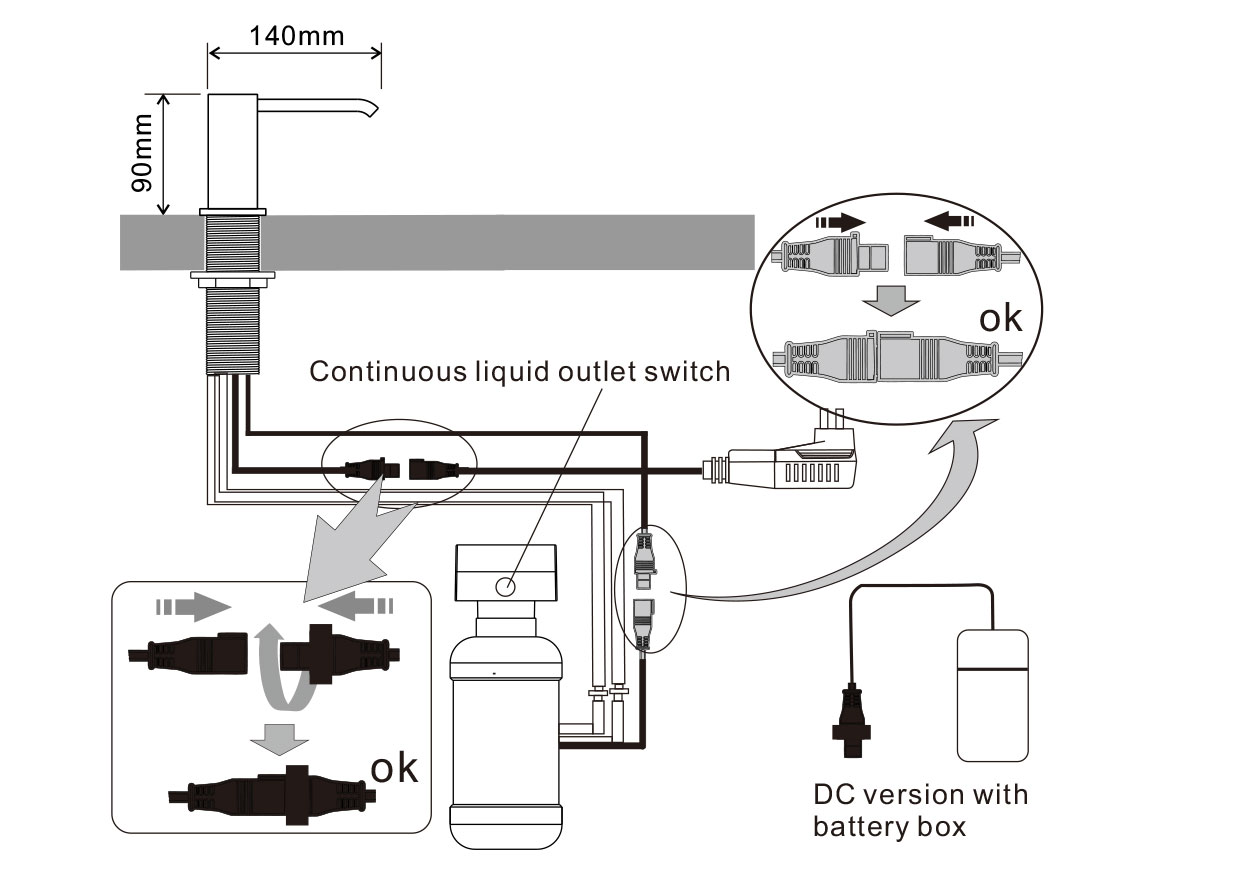

| Sink Dimensions |
 |
| Name | Type | Download Link |
| PRODUCT MANUAL(LGJZ01A).jpg | JPG |  |
