1. This faucet hand dryer is suitable for under-counter sinks.
2. The faucet body is made of SS304 stainless steel, making it sturdy and durable.
3. Equipped with a high-speed mini brushless motor (100,000 RPM), providing you with efficient and convenient handwashing service.
4. Utilizes a water-saving honeycomb-shaped aerator, delivering a gentle water flow, preventing water droplets and splashes, and conserving water.
5. A large 3000ml soap dispenser eliminates the hassle of frequent refills.
6. Employs contactless infrared sensing technology and a self-developed brushless motor control circuit system for more stable operation.

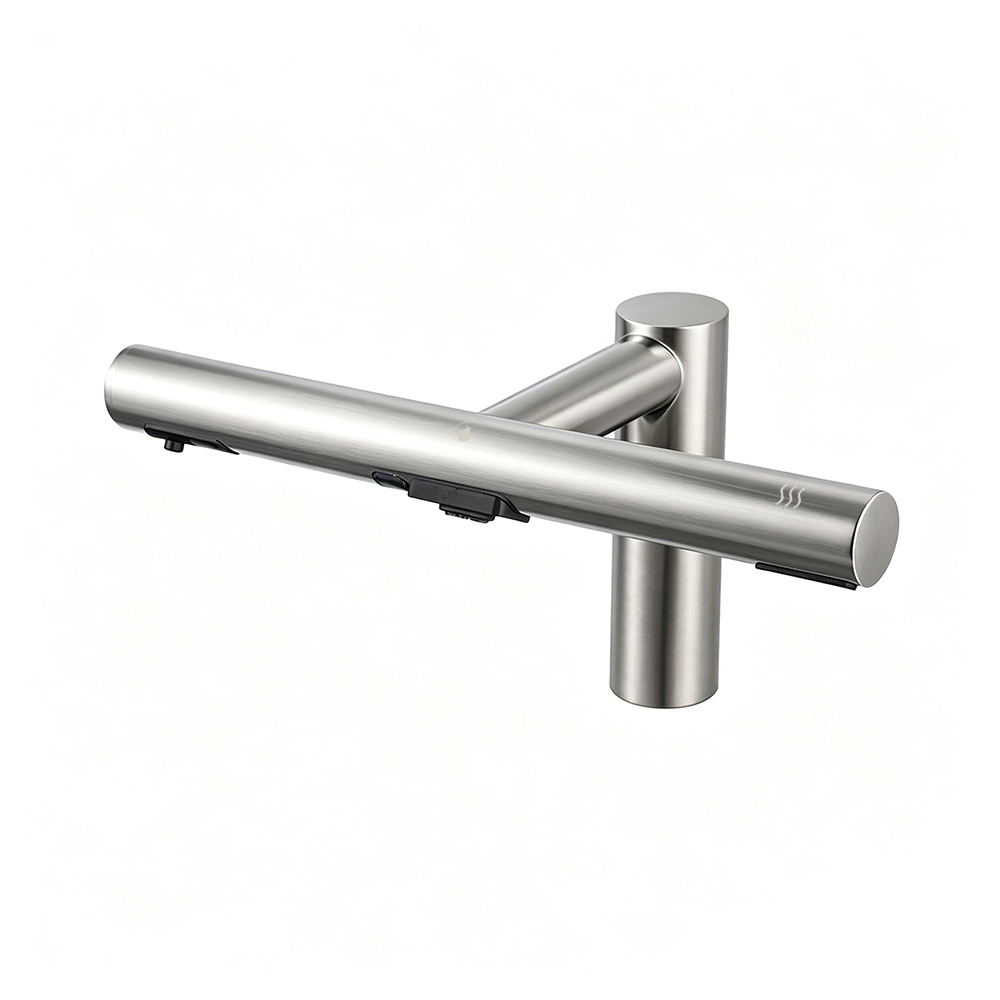

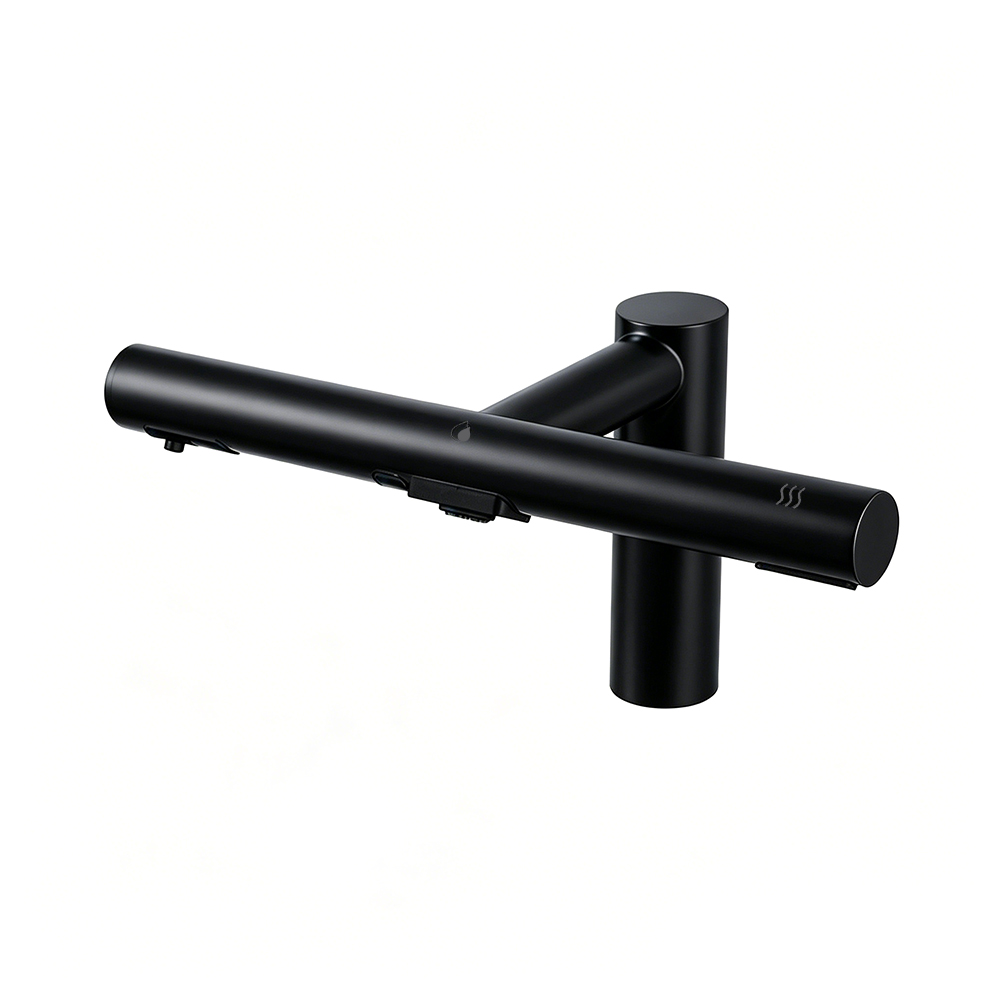

This stainless steel 3-in-1 faucet (hand soap + handwashing + hand dryer) is made of high-quality 304 stainless steel with a brushed or mirror finish. It is corrosion-resistant, rust-resistant, durable, and easy to clean, making it suitable for long-term use in public places.
| Model | Faucet Material | Inner Carton Dimensions (1 piece) | Outer Carton Dimensions (2 pieces) | N.W | G.W |
| LGT303A | SS304 | 41.5*35.5*24 (cm) | 44*38*52.5(cm) |
12kg |
13kg |
 |

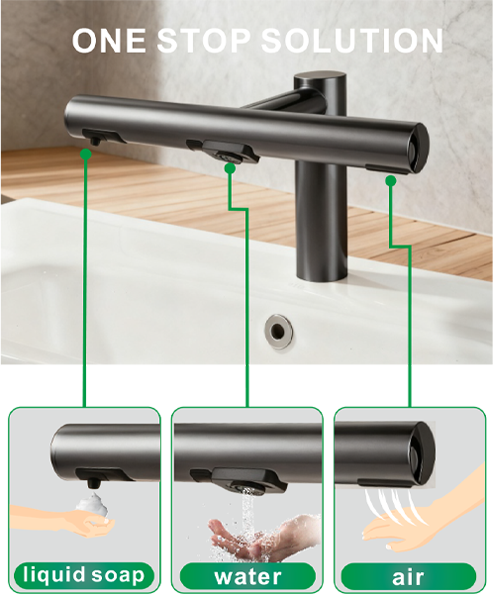

3 in 1 Wash Dry Soap Dispenser Commercial Stainless Steel SS304 Auto Smart Sensor Basin Faucet Tap Hand Drye The 3 in 1 tap hand dryer integrates soap liquid, water outlet, and hand drying functions into one solution. You can complete the soap dispensing, hand washing, and hand drying steps without moving your steps. All steps are done in the sink without dirtying the floor, improving the experience and efficiency. On the other hand, its dispensing volume is stable and operates very quietly. It is very easy to refill soap, and all key parts are independent for easy maintenance. It also comes with a 3000ML large capacity soap dispenser, eliminating the need for frequent refilling of soap. There are two ways to produce soap solution: foam and liquid. A high-speed small brushless motor with a speed of 100,000 RPM is installed inside the faucet body. There are no complex air duct connections or large mainframe equipment at the bottom of the faucet, making product installation more convenient. |
|
|
Anti-splash aerator
|
 |

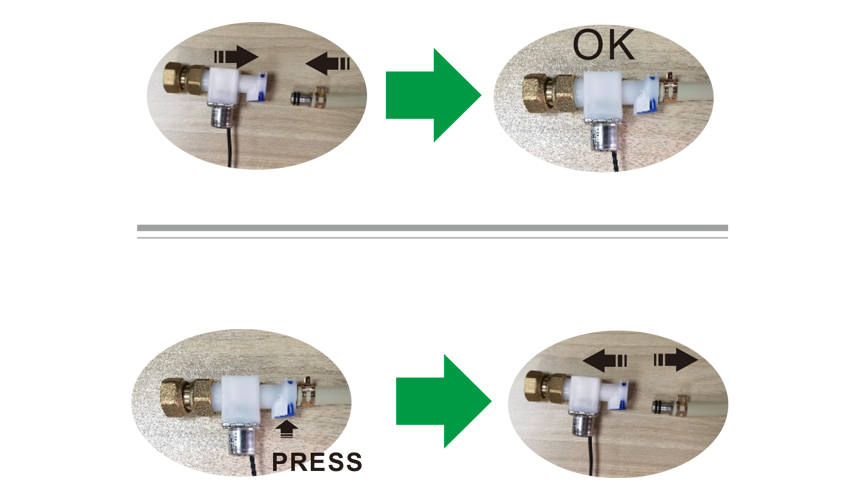

| Quick installation and disassembly of inlet pipe The inlet pipe adopts a quick plug quick interface, which can be connected in one second, saving time and effort in installation/maintenance! |
 |
 |
 |

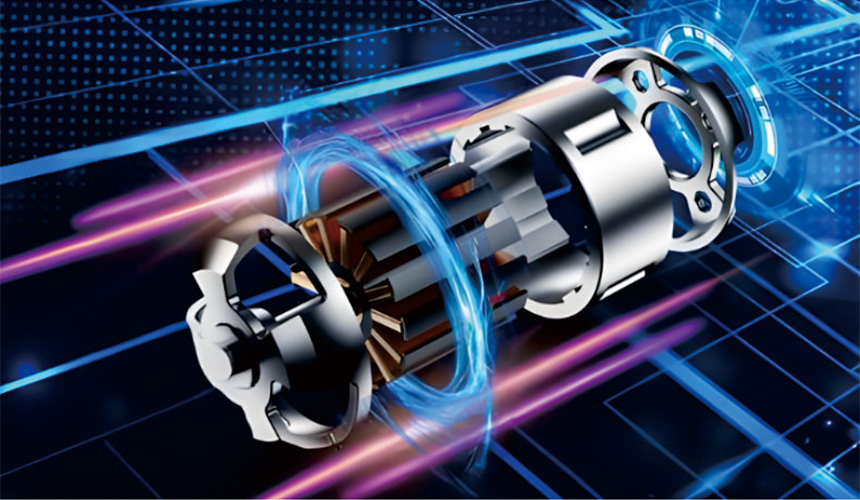

| The heart of LGT03 faucet hand dryer - high-speed brushless motor, using all copper coils and optimized air duct design, with strong power, can provide ultra-high speed of 100000 RPM, and the hand drying effect is impressive! | The main body of the faucet hand dryer - the faucet housing, is made of high-quality 304 stainless steel pipes! Good materials naturally lead to good products! We provide you with high-quality products made from genuine materials! |
Surface Treatment
Chrome plated/brushed/brushed gold/gun gray/black/red
Ideal For These Locations
● Cruise/Office Space ---- Save washbasin space in compact restrooms.
● Airports/stations ---- multifunctional faucets with high capacity to support large passenger flows.
● Shopping centers/malls ---- create minimalist bathroom designs.
● Exhibition Center/Event Hall ---- Easily handles large crowds and easy to clean .
● School/food factory/electronics factory/pharmaceutical factory ---- no contact with hand washing/hand drying, clean and hygienic.
| Tap dimersions | Host dimersions |
 |
 |
| Technical Parameters | |||
| ● Input Power: 220-240VAC/110V, 50/60Hz | ● Operating Temperature Range: 1-55℃ | ||
| ● Total Power: 600W | ● Max Water Outlet Time: 60s | ||
| ● Operating Temperature Range: 5-40℃ | ● Inlet Connection: G1 /2'' | ||
| ● Environment Humidity: ≤80% | ● Water Pressure Required: 1-8 bar | ||
| ● Sensing Distance: 3-12cm | ● Opening Hole Diameter: φ35mm | ||
| ● Air Speed: 80m/s | ● Min Sink Depth: 100mm | ||

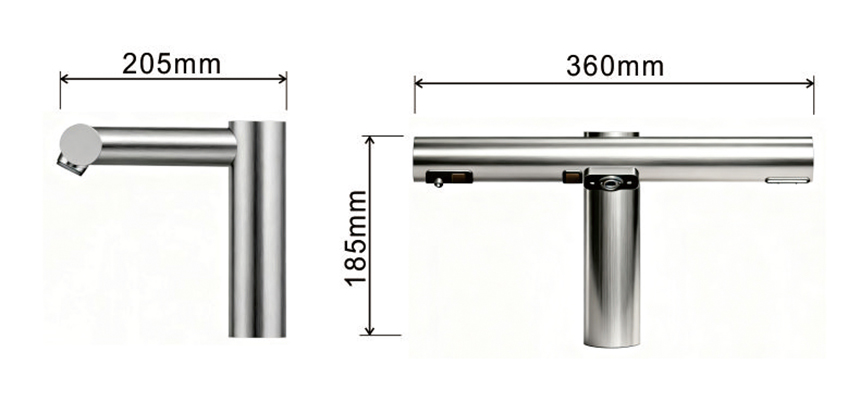

| ● Drying Time: 10-15s | ● Tap Dimersions: 360WX185HX205D(mm) | ||

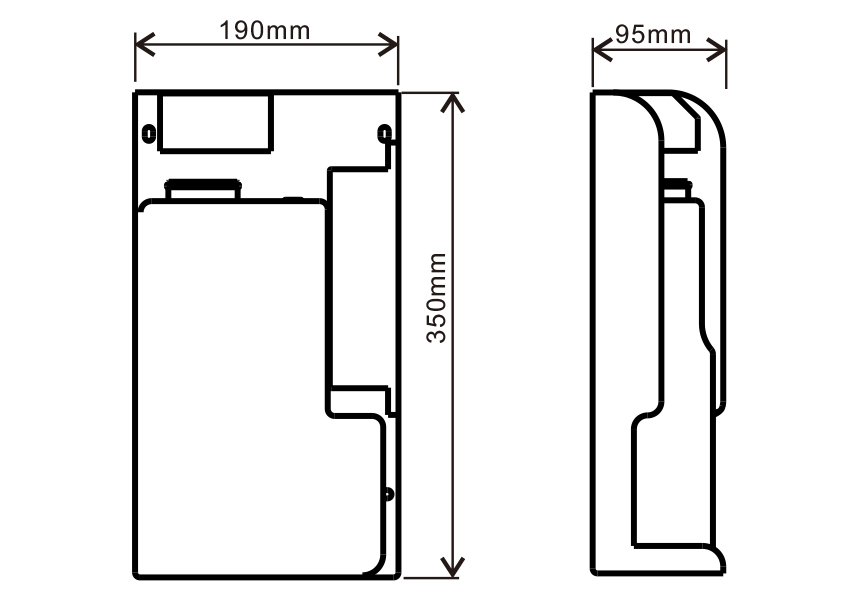

| ● Max Drying Time: 60s | ● Host dimersions: 190WX350HX95D(mm) | ||
| ● Maximum single water flow duration: 60s | ● Max Altitude: 2000m | ||
| ● Motor: Digital Brushless DC Motor | ● Mounting: Deck Mounted | ||
| ● Unfitted Sink: Highly polished surfaces (This may cause self-induction) | |||
| Sink Dimensions |
 |
Size of sink minimum: 400mmX300MM / internal depth of sink minimum:100mm |
 |
| Tap Mounting When multiple taps are installed side-by-side, tap centers should be a minimum of 600mm apart. |
 |
| Name | Type | Download Link |
| LIGEN-TAP-LGT03-FRONT | DXF |  |
| LIGEN-TAP-LGT03-LEFT | DXF | |
| LIGEN-TAP-LGT03-RIGHT | DXF | |
| LIGEN-TAP-LGT03-TOP | DXF | |
