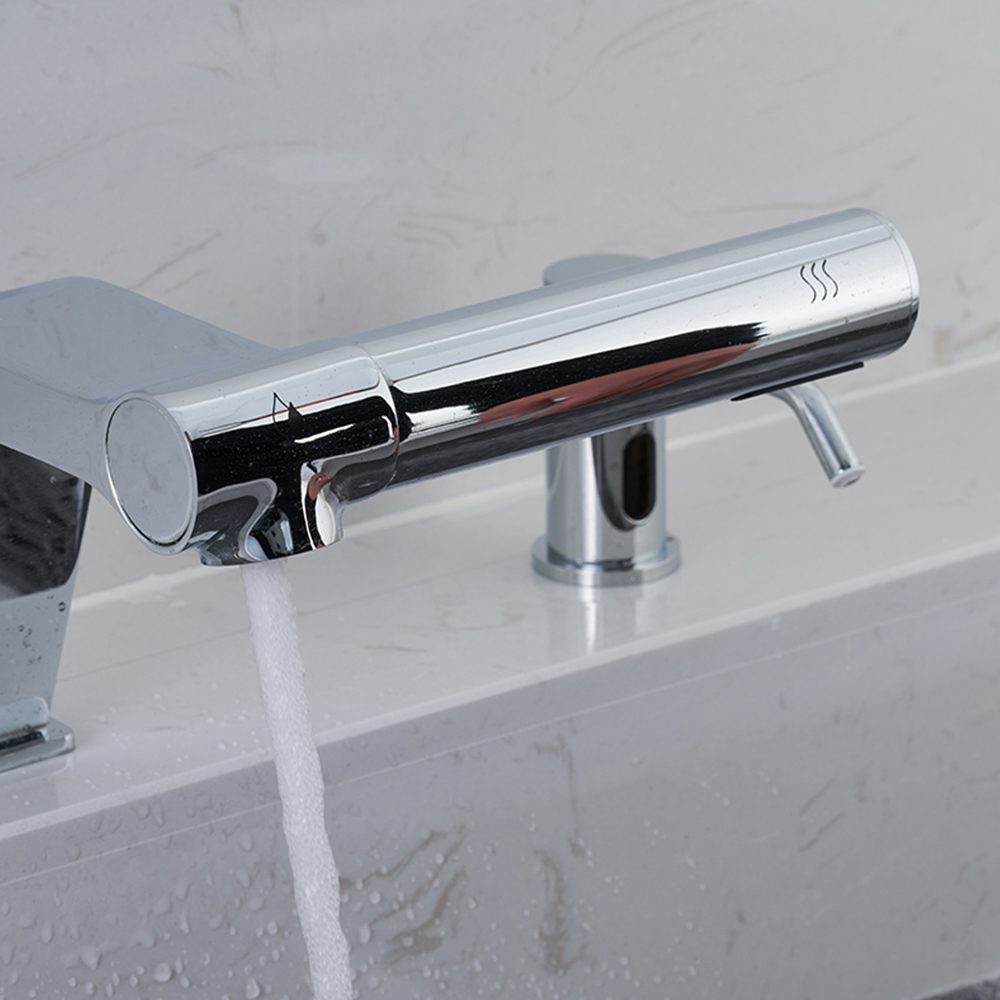

1. This 2-in-1 faucet hand dryer is made of Copper material, making it sturdy and durable.
2. This tap hand dryer is suitable for under-counter sinks.
3. Equipped with a high-speed mini brushless motor (100,000 RPM), providing you with efficient and convenient handwashing service.
4. Utilizes a water-saving honeycomb-shaped aerator, delivering a gentle water flow, preventing water droplets and splashes, and conserving water.
5. Employs contactless infrared sensing technology and a self-developed brushless motor control circuit system for more stable operation.
| Part name/ Size |
 |
| Technical Parameters | |||
| ● Input Power: 220-240VAC/110V, 50/60Hz | ● Operating Temperature Range: 1-55℃ | ||
| ● Total Power: 600W | ● Max Water Outlet Time: 60s | ||
| ● Operating Temperature Range: 5-40℃ | ● Inlet Connection: G1 /2'' | ||
| ● Environment Humidity: ≤80% | ● Water Pressure Required: 1-8 bar | ||
| ● Sensing Distance: 3-12cm | ● Opening Hole Diameter: φ35mm | ||
| ● Air Speed: 80m/s | ● Min Sink Depth: 100mm | ||
| ● Drying Time: 10-15s | ● Tap Dimersions: 360WX185HX205D(mm) | ||
| ● Max Drying Time: 60s | ● Max Altitude: 2000m | ||
| ● Motor: Digital Brushless DC Motor | ● Mounting: Deck Mounted | ||
| ● Starting System: Infrared Induction | |||
| ● Unfitted Sink: Highly polished surfaces (This may cause self-induction) | |||

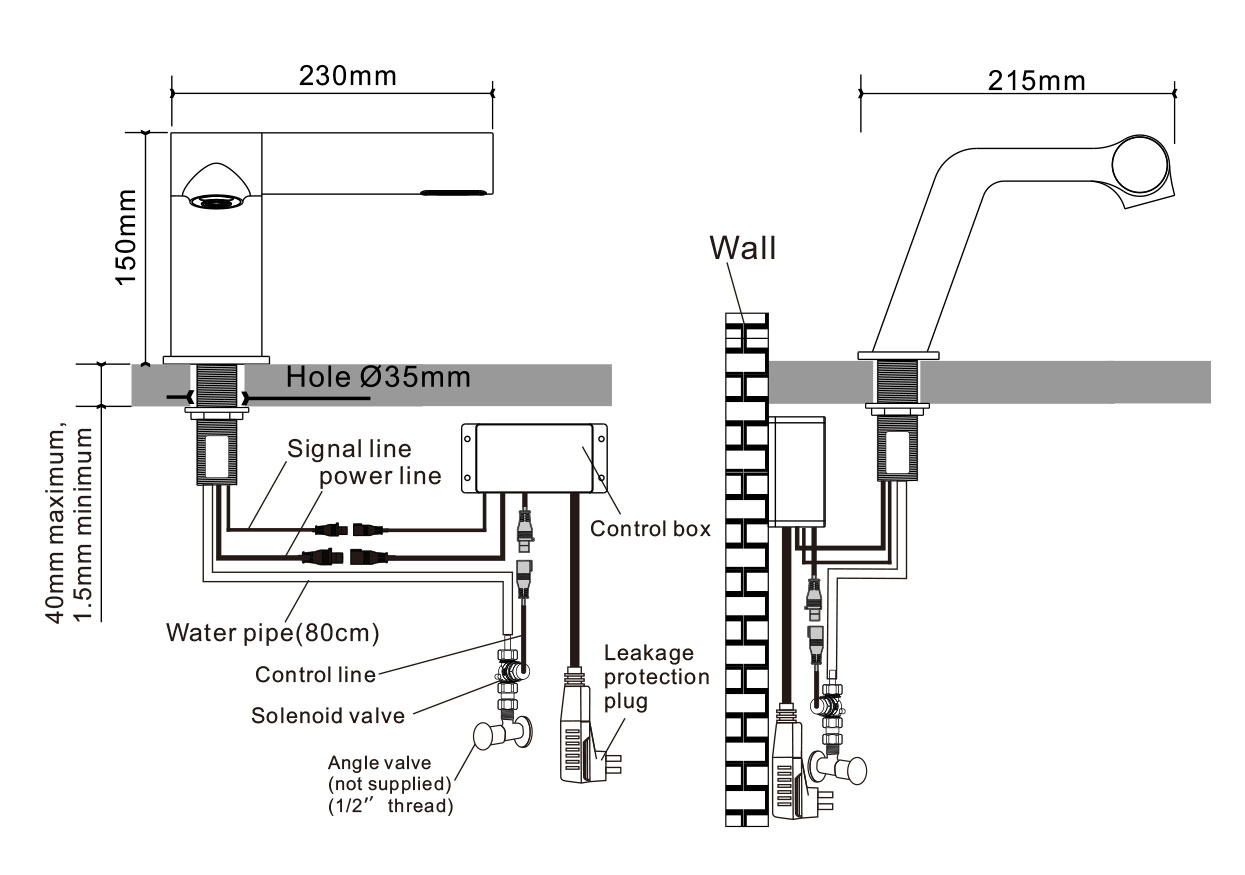

| Sink Dimensions |
 |
Size of sink minimum: 400mmX300MM / internal depth of sink minimum: 100mm |
 |
| Tap Mounting When multiple taps are installed side-by-side, tap centers should be a minimum of 600mm apart. |
 |
| Name | Type | Download Link |
| PRODUCT MANUAL(LGT201A) |  |
